Callnet Remote Testing and Security products
| Product |
Part # |
Order |
|

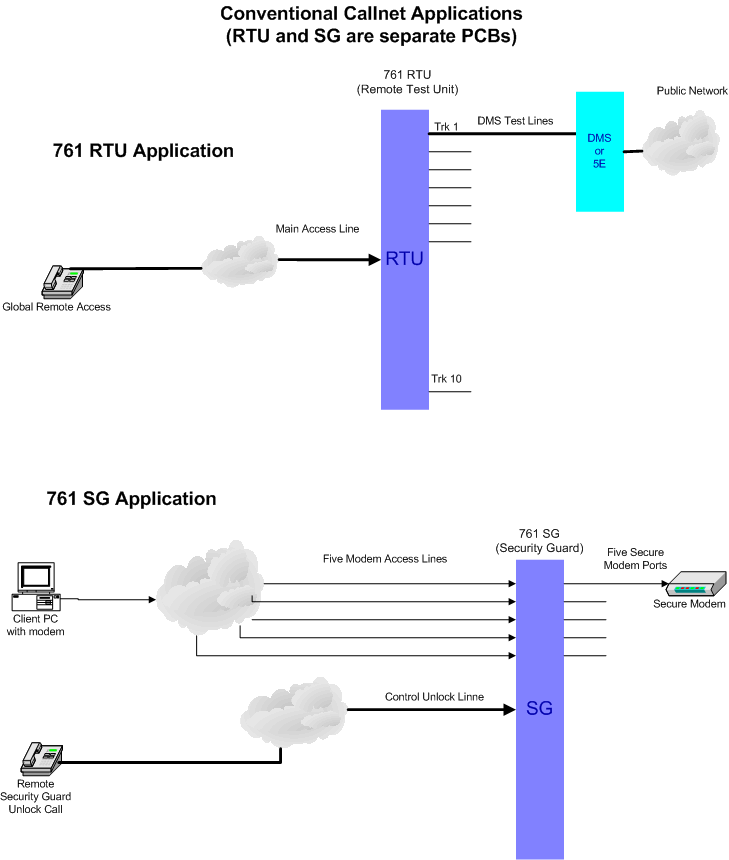

| Remote Test Unit for L32 MDF mount (circuit pack only) |
761RTU-L32 |
|
|
| Remote Test Unit for L33 table top mount (circuit pack only) |
761RTU-L33 |
|
|
| Remote Test Unit for L34 3-slot mount (circuit pack only) |
761RTU-L34 |
|
|
| Remote Test Unit for L35 400 shelf mount (circuit pack only) |
761RTU-L35 |
|
|
| Mounts sold separately below in the Mounts section |
| Security Guard 5 Line for L32 MDF mount (circuit pack only) |
761SG5-L32 |
|
|
| Security Guard 5 Line for L33 table top mount (circuit pack only) |
761SG5-L33 |
|
|
| Security Guard 5 Line for L34 3-slot mount (circuit pack only) |
761SG5-L34 |
|
|
| Security Guard 5 Line for L35 400 shelf mount (circuit pack only) |
761SG5-L35 |
|
|
| Mounts sold separately below in the Mounts section |
| Security Guard 1 Line (economical version) |
761SG-1 |
|
|
| Security Guard w/DTMF Authentication |
761SG-D |
|
|
| Security Guard for Ethernet |
761SG-E |
|
|
| Modem Guard |
761MG |
|
|

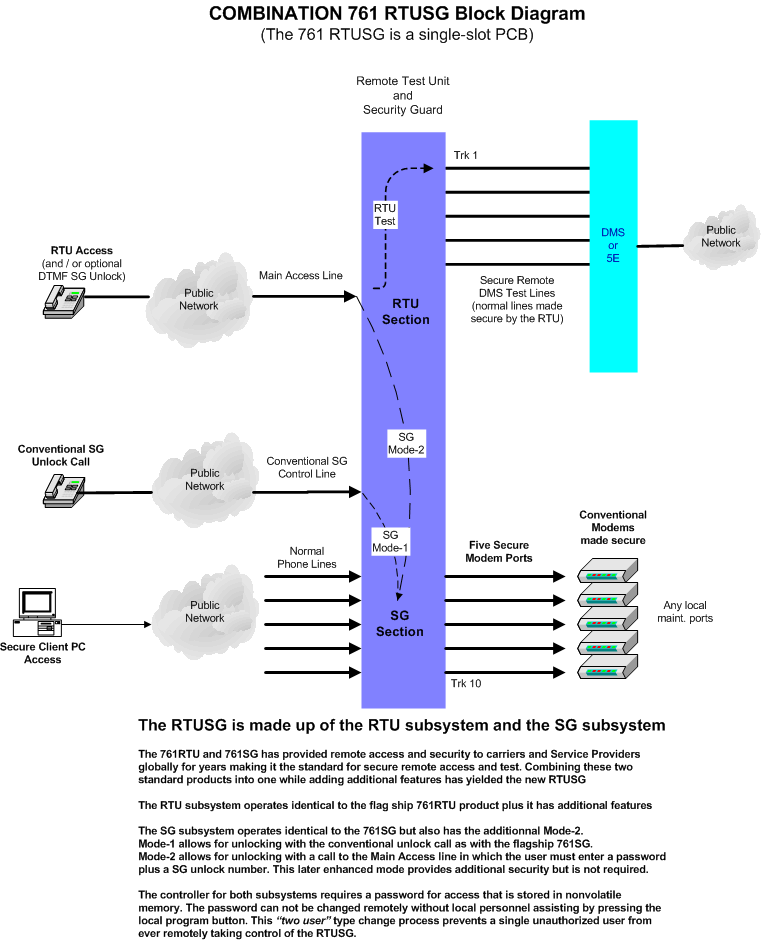

| Remote Test Unit Security Guard Combo |
761RTUSG |
|
|

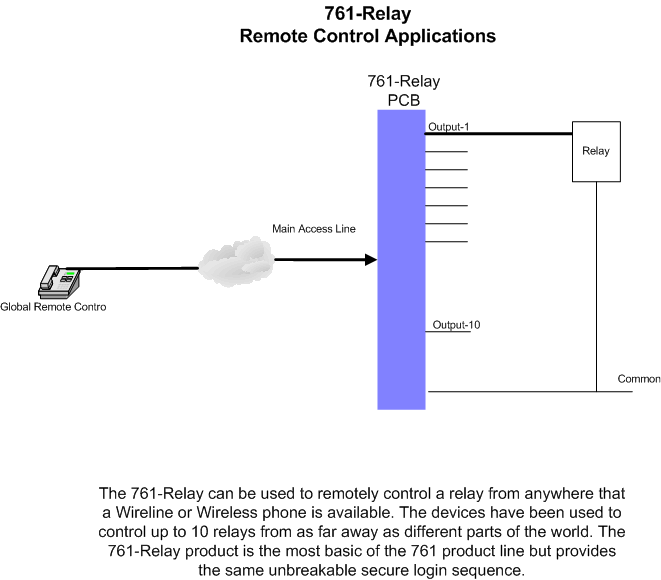

| Remote Relay Control |
761RELAY |
|
|
| Remote Access Unit (discontinued, use new 761RTU and see FAQ section for more information) |
761RA |
N/A |
|
| Optic Guard (Stay-Alive Single Mode light source with detector. Alarm provided upon an open or cut Fiber Optic cable route) |
761OG |
|
|

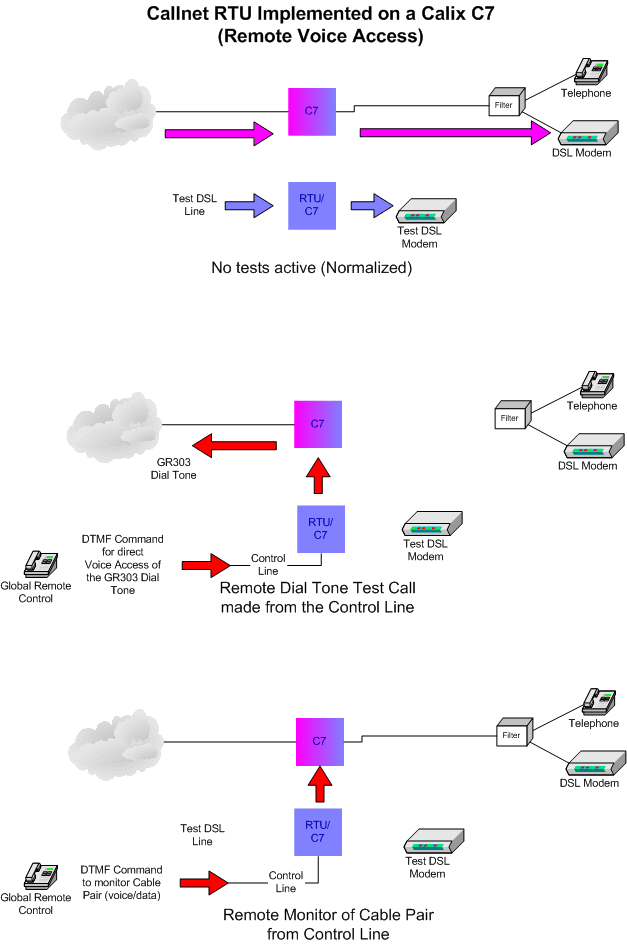

| RTU for Calix C7 with 480 Addressable Access Lines |
761RTU-C7 |
|
|
| RTU for Calix C7 with up to 3360 Addressable Access Lines |
761RTU-C7-3K |
|
|
510 LG Line Guard
(Combo-Tone) |
510LG |
|
|
|
| Product |
Part # |
Order |
|
| MDF Terminal Block Mount |
761L32 |
|
|
| Table Top Enclosure Mount (special order) |
761L33 |
|
|
| 3 slot 1u Mount for 19" or 23" relay rack |
761L34 |
|
|
| 11-slot 400 shelf Mount for 19" or 23" relay rack |
761L35 |
|
|
Other Callnet Products |
| Product |
Part # |
Order |
|

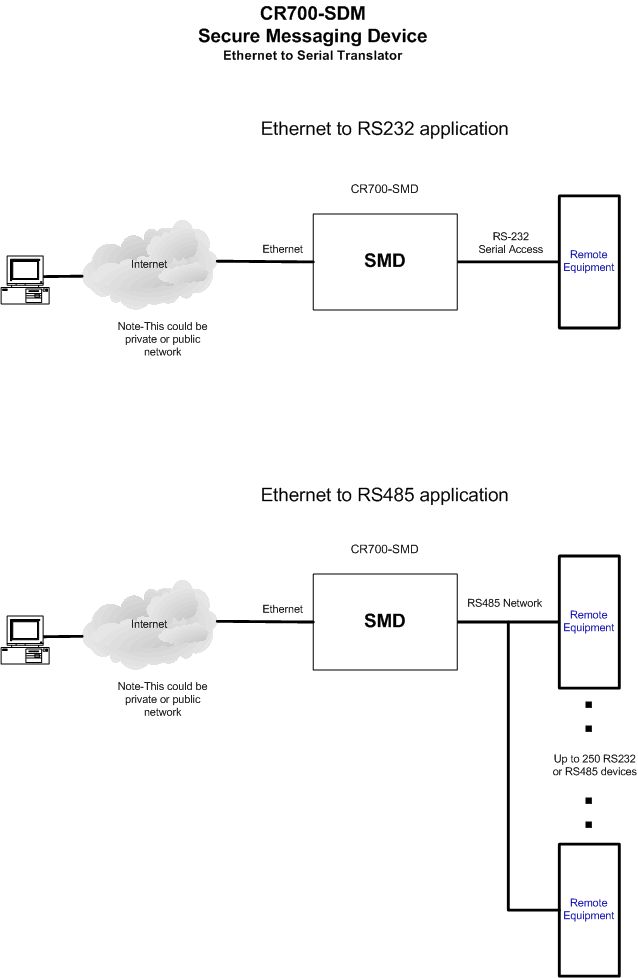

| Secure Messaging Device (ethernet-serial) Provides remote Out of Band SSL access to RS232 devices over ethernet, allowing the internet to provide the backhaul to legacy devices. First used on AFC, Calix C7, Cisco, Nortel DMS but can be used on many remote RS232 devices |
CR700-SMD |
|
|
| Modem / Power Guard (Secure Out of Band protection for remote modem ports on an Adtran or MRT DSLAM, also providing same remote reset capability of the 861PG product) |
861MPG |
Note-2 |
|
| Power Guard (Secure Reboot Brick to remotely reset Adtran and MRT DSLAMs or other DC devices) |
861PG |
Note-2 |
|
| Modem / Power Guard(No-Ping) 861MPG with Auto reboot upon no-ping response being heard. (Future design) |
future |
Note-2 |
|
| AC Power Rebooter (2 port model) Various other models available for routers, switches & other AC powered equipment |
CRNP0201D |
|
|
| |
|
|
|
734 Mini Cau (Binding Posts) |
734 |
|
|
735 Mini Cau (Bantam Jacks) |
735 |
|
|
| 900 Terminal Block (can house up to 4 each of the 912 or 925 PCBs) |
900 |
|
|
| 912 Relay Circuit |
912 |
|
|
| 925 Diode Circuit |
925 |
|
|
| 751 Tone Generator |
751MW |
Note-1 |
|
| 940 Alarm Panel |
940 |
Note-1 |
|
| 120v to 48v Callnet Supply (for 400 shelf) |
761L36 |
|
|
| 120v to 48v Callnet Supply (for L32 - L34) |
761L38 |
|
|
| DDS Quick Tester (56k Test Set for Telco & Data Techs) |
DDS-1 |
|
|

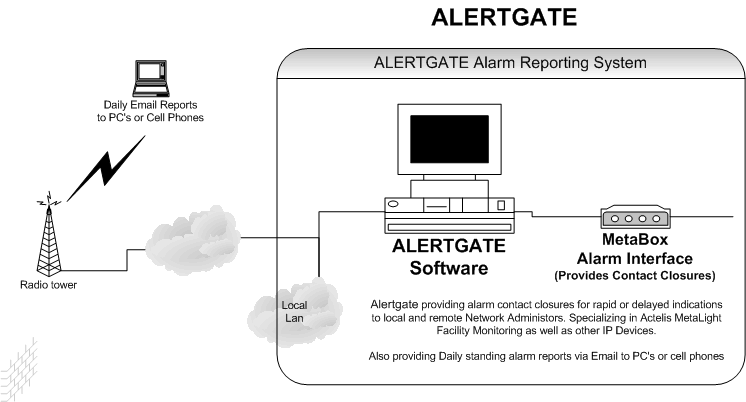

*** AG1.2CS (Alertgate Complete System) with rackmount PC is presently being finalized. Check back for availability.
